Why Do Gabion Walls Fail? 5 Engineering Mistakes & Prevention | Fande

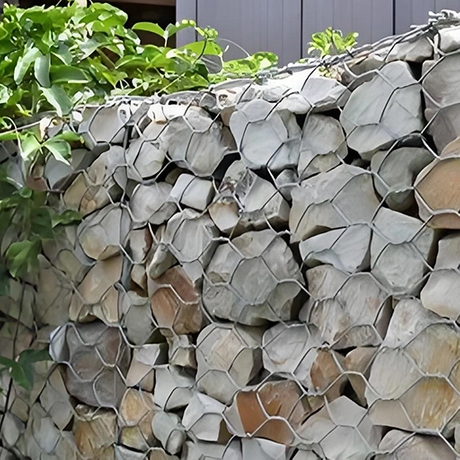

        In the fields of river channel management and civil engineering, woven gabion mesh is widely recognized as a highly flexible and eco-friendly solution. However, through our global engineering support operations, we have observed that many gabion structures exhibit bulging, collapse, or even structural failure after just 3 to 5 years of service.

        These failures are often not attributable to the materials themselves, but rather stem from "hidden errors" embedded within the design and construction phases. As a leading Chinese manufacturer of gabion mesh, Fande offers an in-depth analysis of the five primary causes behind these engineering failures.

        Ⅰ. The "Invisible Shrinkage" of Wire Diameter and Mesh Specifications

        To reduce costs, many suppliers misrepresent a wire diameter of 2.7 mm as 3.0 mm, or increase the mesh aperture size. However, a reduction of just 0.1 mm in wire diameter results in a significant decline in tensile strength; consequently, once filled, the gabion baskets are unable to withstand the static pressure exerted by the internal stones, leading to severe "bulging" and, ultimately, structural instability.

        Pitfall Avoidance Guide: Strictly adhere to the ASTM A975 standard and require suppliers to provide a Material Test Certificate (MTC) for every batch.

        Ⅱ. Neglected the uneven settlement of the foundation.

        Due to the inherent flexibility of woven gabion mesh, when placed on soft soil foundations without necessary reinforcement-or without the use of Reno Mattresses for base protection-excessive settlement can lead to the formation of cracks between the individual gabion cages.

        Pitfall Avoidance Guide:Fully leverage the structural integrity of Double Twisted Mesh by reinforcing the connections of the selvedge wires to enhance the structure's shear resistance.

        Ⅲ. Improper specifications of filling stones

        When stones smaller than the mesh openings are used, or when easily weathered rock is employed, the small stones are washed away by the water flow; this results in the formation of voids within the wire cage, a reduction in the overall structural weight, and a consequent loss of earth-retaining capacity.

        Pitfall Prevention Tip: Ensure that the stone size is 1.5 to 2 times the mesh opening size.In our "Step-by-Step Installation Guide",we provide detailed instructions on how to ensure structural compaction through layered filling.

        Ⅳ. Misinterpretation of Coatings in Corrosive Environments

        If ordinary electro-galvanized steel wire is used in acidic soil or a salt-mist environment, the coating will peel off within one to two years, causing the underlying steel wire to rust rapidly and fracture.

        Pitfall Avoidance Guide: For highly corrosive environments, it is essential to utilize a dual-layer protection system featuring either Galfan (a zinc-aluminum alloy) or a PVC coating. You may refer to our "Galfan vs. PVC Coated Gabion Mesh" guide to assist you in making your decision.

        Ⅴ. Lack of Proper Installation of Internal Tie Wires

        During the filling process, the panels of the wire mesh cages tend to bulge outward. Occasionally, in an effort to expedite the schedule, construction personnel omit the internal bracing ribs; this prevents the cages from maintaining their vertical alignment,thereby severely compromising both the structural aesthetics and load-bearing equilibrium.

        Therefore, when filling gabion cages, a set of tie rods must be installed at every one-third increment of the cage's height.

        Ⅵ. FAQ

        Q: Can a gabion retaining wall be repaired after it has deformed (bulged)?

        A: Minor deformation can be mitigated through the application of external supports; however, if the structure's center of gravity has shifted, it typically requires dismantling and reconstruction. Prevention is better than cure; selecting high-quality woven mesh that complies with ASTM standards is the key.

        Q: How does Fande ensure the safety of its engineering projects?

        A: We not only supply high-strength woven gabion products but also provide technical selection guidance for engineering projects worldwide. Our Galfan coating undergoes rigorous salt spray testing to ensure that structural integrity and safety are maintained even in extreme environments.

        Conclusion:Choose Your Major Wisely, Avoid Risks

        When it comes to engineering safety, no detail is too small. Throughout the lifecycle of a gabion retaining wall, material costs typically constitute only a minor fraction of the total expense; however, should a failure occur, the remedial costs can be enormous.

        If you are facing complex engineering challenges-or have concerns regarding your current procurement strategy-Fande’s team of engineers is ready to provide you with expert technical support.
