How to Calculate the Cost of Your Gabion Project? Factors Influencing Gabion Basket Pricing

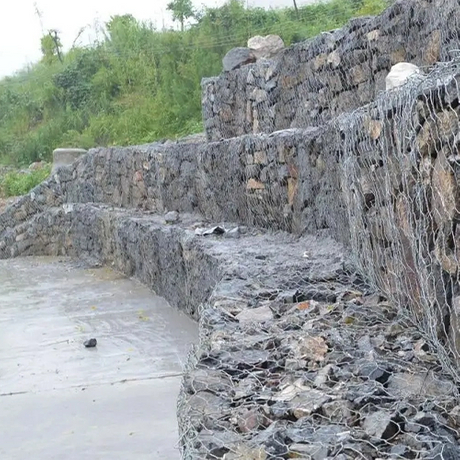

        Gabion mesh is a top choice for river management, retaining wall construction, and landscape design due to its ecological balance,flexible structure,and cost effectiveness. However, the most frequently asked question by project budgeters and procurement managers is: "How much will my gabion mesh project actually cost?"

        The price of gabion mesh is not simply "unit price × quantity." From material specifications to transportation and filling, multiple variables determine the final return on investment (ROI). This guide will provide an in-depth breakdown of the core factors influencing gabion mesh prices, helping you make the most accurate cost budget.

        Ⅰ. Core material costs: wire mesh specifications and coating

        The material cost of gabion cages accounts for 40%-60% of the total expenditure, mainly determined by the following three technical indicators:

        1. Anti-corrosion coating – determines service life

        • Ordinary electro-galvanized:Weak corrosion resistance,only suitable for temporary projects or indoor decoration.

        • Hot-dip galvanized:The industry standard choice,with good corrosion resistance.

        • Galfan: A zinc alloy coating containing 5% aluminum. Although the initial unit price is about 10%-20% higher than hot-dip galvanized, its service life is 2-3 times longer.

        • PVC/PE coating: Plastic wrapped around the above metal layers, suitable for acidic or alkaline waters or marine environments.

        2. Wire Diameter and Mesh Size

        • The thicker the wire diameter (typically 2.0mm-4.0mm), the more steel is consumed, and the higher the price.

        • The smaller the mesh size (e.g., 60x80mm vs. 100x120mm), the higher the weaving density, and the cost increases accordingly.

        Ⅱ. Auxiliary parts and assembly costs

        Gabion mesh is not just about the gabion cages themselves. To ensure structural stability, the following components must be included in the budget:

        • Tied wire/spiral reinforcement: Used for connecting the edges of the gabion cages.

        • Stiffeners: Prevent the gabion cages from bulging and deforming after being filled with stones.

        • Geotextile: Lay behind the retaining wall to prevent soil erosion; this is also part of the total project cost.

        Ⅲ. Filling material: Selection and logistics of stones

        A major advantage of gabion mesh projects is their adaptability to local conditions.

        • Locally sourced materials: If the site has a large quantity of hard, non-weatherable gravel, significant savings in material and transportation costs can be achieved.

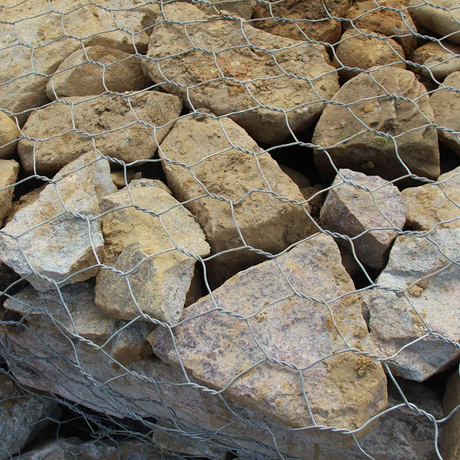

        • Stone specifications: The stone diameter must be at least 1.5 times the mesh size (e.g., for an 8x10cm mesh, it is recommended to fill with 10-20cm stones).

        Ⅳ. Invisible assets: Long-term maintenance and environmental benefits

        When calculating costs, the life cycle cost (LCC) should not be ignored:

        • No drainage system required: Gabion mesh is naturally permeable, saving the cost of complex drainage systems required for concrete walls.

        • Vegetation restoration: Over time, vegetation growth in the gaps further strengthens the structure, reducing later repair costs.

        Fande Gabion boasts years of global engineering supply experience, dedicated to providing you with high-quality gabion products that meet ASTM/EN standards.
