Mastering Gabion Slope Protection: 5 Engineering Design Principles for Long-Term Stability

        In slope protection engineering, erosion and instability are the leading causes of structural failure. While traditional concrete retaining walls are rigid, they often crack under groundwater pressure due to a lack of permeability. In contrast, gabion slope protection—distinguished by its exceptional flexibility and drainage capabilities—has emerged as the preferred solution for sustainable infrastructure globally in 2026.

        As a professional manufacturer with over 20 years of experience, Fande has distilled five core engineering design principles for ensuring the long-term stability of gabion slope protection, helping you mitigate common engineering risks.

        Ⅰ. Hydraulic Stability and Velocity Verification

        The designed thickness of a Reno Mattress must be sufficient to withstand the maximum shear stress present in the river channel or slope face.

        • Design Key Point: The particle size of the filling stones must be selected based on the anticipated maximum flow velocity.

        • Engineering Standard: Ensure that the average particle size (D₅₀) of the stones exceeds the mesh opening size to prevent the loss of stone material due to scour.

        Ⅱ. Permeability and Pore Water Pressure Management

        The most fundamental advantage of a gabion structure lies in its inherent self-draining properties.

        • Design Requirement:A geotextile fabric-meeting all applicable specifications—must be installed between the slope face and the gabion structure.

        • Disaster Mitigation Value:This design facilitates the rapid drainage of groundwater from within the slope body, thereby effectively reducing pore water pressure and preventing overall slope failure caused by "hydrostatic expansion."

        Ⅲ. Structural Flexibility and Foundation Adaptability

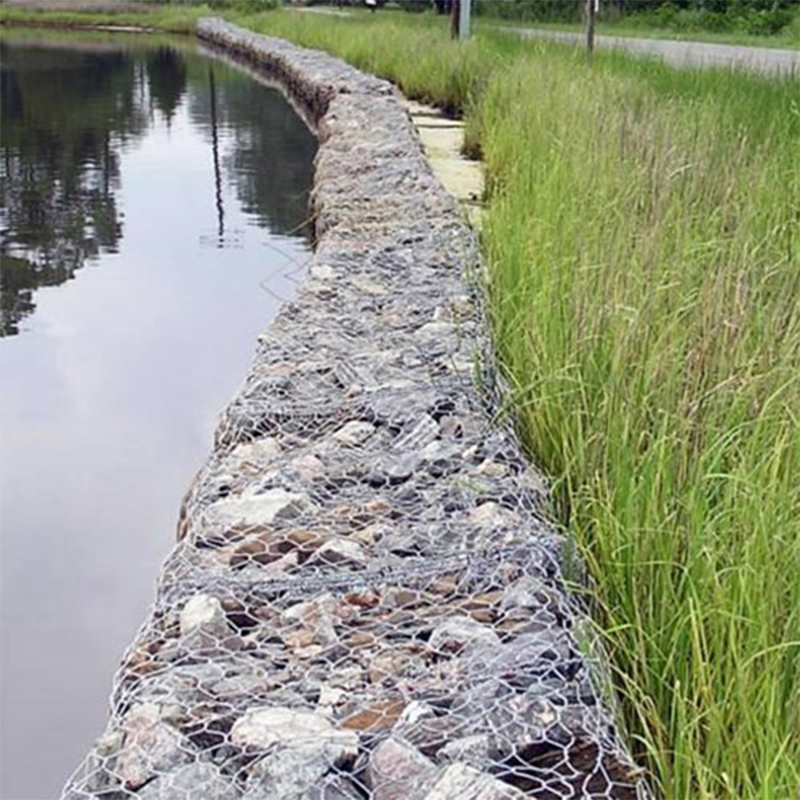

        Unlike rigid structures, the double-twisted gabion woven mesh structure accommodates moderate differential settlement.

        • Design Key Point: It utilizes double-twisted hexagonal mesh that complies with the ASTM A975 standard.

        • Stability Assurance: Even in the event of minor foundation displacement, this flexible structure redistributes stress through self-deformation, thereby preventing sudden structural failure.



        Ⅳ. High-Performance Materials Specifications

        In high-wear and highly corrosive environment—such as coastal regions or areas with acidic soils-material durability is the primary determinant of a project's service life.

        • Design Considerations: Prioritize the selection of Galfan (zinc-5% aluminum alloy) coatings, and incorporate an additional PVC sheathing layer in corrosive environments.

        • Technical Specifications: Ensure that the steel wire possesses a tensile strength within the range of 350–500 MPa and a zinc coating weight of at least 245 g/m², thereby guaranteeing a maintenance-free service life exceeding 50 years.

        Ⅴ. Bioengineering and Vegetation Restoration

        Modern slope protection engineering is no longer merely a matter of physical defense, but rather a process of ecological restoration.

        • Key Design Principle: Fill the crevices between the stones with an appropriate amount of native soil and plant drought-resistant vegetation.

        • Long-Term Benefits: As their root systems grow, the plants will intertwine with the gabion mesh to form a "living" protective system; this not only enhances the aesthetic appeal of the environment but also further reinforces the long-term stability of the slope through biological anchoring.

        Ⅵ. FAQ

        Q: What is the maximum allowable slope gradient for a gabion slope protection design?

        A: Typically, a slope gradient between 1:1 and 1:1.5 is recommended. If the slope is steeper, stepped retaining wall structures or the addition of anchors are required to enhance stability.

        Q: How does this type of slope protection structure perform in extremely cold regions?

        A: It performs exceptionally well. The porous structure of the gabion mesh effectively mitigates the expansive forces caused by freezing, thereby preventing structural damage resulting from "frost heave"—an advantage that rigid concrete structures cannot match.

        Conclusion
