In the realm of civil engineering and environmental restoration, the selection of appropriate erosion control materials is paramount to the longevity and safety of infrastructure. Gabion products—modular wire mesh containers filled with stone—have emerged as a versatile, cost-effective, and ecologically sound solution for diverse applications. Whether managing high-velocity river currents or stabilizing steep road embankments, the technical specifications of the gabion mesh determine the structure's resilience.
This guide provides a comprehensive framework for selecting gabion products tailored to four critical sectors: rivers, slopes, roads, and landscapes. By adhering to international standards such as ASTM A975 and EN 10223-3, engineers and contractors can ensure optimal performance in even the most challenging environments.

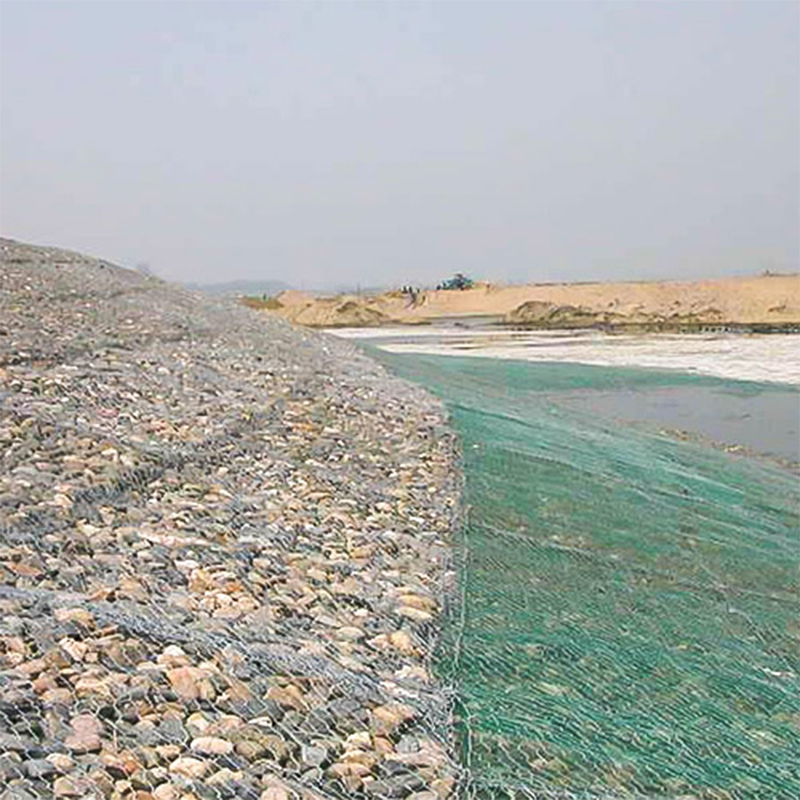

Riverbank protection and channel regulation require gabion systems that can withstand constant hydraulic pressure and potential chemical corrosion. The primary objective in these projects is to prevent scour and maintain the integrity of the bank.
For submerged or partially submerged structures, PVC-coated gabions are often the preferred choice. The polymer coating provides an additional barrier against the corrosive effects of water and abrasive sediments. In areas with high flow velocities, Reno mattresses—shallower, broader gabion units—are utilized to provide large-scale surface protection while remaining flexible enough to conform to riverbed changes.
For riverbank protection, the double-twisted hexagonal woven mesh is specified due to its non-raveling nature; if a single wire is severed, the structural integrity of the entire unit remains intact.
Slope stabilization involves mitigating the risk of landslides and soil loss on steep terrains. The selection process here focuses on the mass and structural stability of the gabion unit.
Retaining walls built with gabion boxes are highly effective due to their inherent permeability, which eliminates hydrostatic pressure behind the wall—a common cause of failure in rigid concrete structures. For slopes with high soil acidity or frequent moisture, Galfan (Zinc-5% Aluminum-Mixed Rare Earth Alloy) coating is recommended, as it offers two to three times the corrosion resistance of standard galvanization
Application | Recommended Product | Coating Type | Primary Benefit |
Steep Slope Stabilization | Gabion Box (Retaining Wall) | Galfan / PVC | Structural Stability & Drainage |
Ecological Riverbank | Reno Mattress | PVC Coated | Scour Protection & Vegetation Support |
Highway Subgrade | Heavy-duty Gabion Mesh | Galfan | Load Distribution & Durability |
Landscape Feature | Terraced Gabion Mesh | Galvanized | Aesthetic Versatility |
Roadway engineering requires gabions that can handle significant mechanical loads and environmental stressors. Gabions are frequently used for highway subgrade protection, bridge abutments, and culvert headwalls.
In road projects, the wire diameter is a critical factor. Standard mesh wires for these applications typically range from 2.7mm to 3.0mm, with thicker selvedge wires (up to 3.9mm) to reinforce the edges of the baskets. Compliance with ASTM A975 ensures that the tensile strength and elongation of the wire meet the rigorous demands of infrastructure load-bearing.
In modern landscaping, gabions serve both functional and aesthetic purposes. They are used for garden walls, seating, and decorative terracing.
For landscape projects, the focus shifts slightly toward the visual finish and ease of installation. Galvanized gabion mesh is often sufficient for these lower-stress environments, providing a clean, industrial look that integrates well with natural stone fill. Fande’s terraced gabion mesh allows for creative garden designs that support vertical greening, promoting biodiversity within urban spaces.
To ensure the safety of any project, selecting gabions that meet international engineering standards is non-negotiable.
The performance of a gabion structure is largely dictated by the quality of the steel wire and its protective coating.
• Galfan Coating: A specialized alloy of 95% Zinc and 5% Aluminum. It provides superior protection against atmospheric and saline corrosion.
• PVC Coating: A nominal thickness of 0.5mm is standard, providing a robust shield for the metallic core in aggressive environments.
• Double-Twisted Mesh: Unlike welded mesh, the double-twisted configuration allows for significant deformation without failure, making it ideal for settling foundations.
As a professional supplier of river protection and restoration solutions, Hebei Fande Metal Products Co., Ltd. combines advanced production equipment with a strict quality control system. Our products are engineered to meet the highest global standards, ensuring that your projects in river management, slope protection, and infrastructure are built to last. We offer a comprehensive range of solutions, including Zinc-Aluminum Alloy Gabion Mesh, PVC Coated Gabion Box, and Reno Mattresses, backed by expert technical support.
What is the difference between Galfan and standard galvanized coatings?
Galfan is a specialized zinc-aluminum alloy (typically 95% Zinc and 5% Aluminum) that provides superior corrosion resistance compared to standard hot-dip galvanization. Research indicates that Galfan-coated wire can last two to three times longer than standard galvanized wire in identical environmental conditions, making it the preferred choice for long-term infrastructure projects.
Are woven gabions better than welded gabions for slope protection?
Woven gabions, specifically double-twisted hexagonal mesh, are superior for applications where the foundation may settle or shift. The woven structure is flexible and can deform without breaking, whereas welded mesh is more rigid and may fracture under significant differential settlement. However, welded gabions are often preferred for architectural landscapes due to their aesthetic uniformity.
What rock size should be used to fill gabion baskets?
According to ASTM D6711, the rock fill should be durable, hard, and weather-resistant. The size of the stones should typically be 1.5 to 2 times the size of the mesh opening to ensure they are properly contained. For a standard 8x10cm mesh, stones ranging from 100mm to 200mm are commonly specified.
How do gabions contribute to ecological sustainability?
Gabions are inherently permeable, allowing for the natural movement of water and air. Over time, the voids between the stones fill with silt and soil, promoting the growth of native vegetation. This process, known as bioengineering, helps to integrate the structure into the natural landscape and supports local biodiversity.
